Rice mill,rice milling machine










Click
LT3A

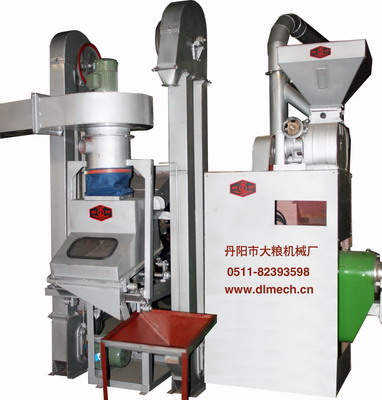

LT3A combined rice mill
1.Product description:
This equipment is a new high-efficiency environmental protection rice processing equipment. The device can make the grain milled into white rice, large bran smash into thin bran. The grinder
can be used independently, but can crush fine bran, also can crush a variety of feed processing. The Stoner can also be used independently, for all kinds of beans, cereal cleaning to stone.
2.Product characteristics:
The device of multiple functions in one, removing impurity and stone, husking, rice milling, white rice grading, crushing, dust removal.
The small equipment investment, high efficiency, long life, low rice temperature, little broken, multiple purposes, convenient operation and debugging repair.
3.Main technical parameters:
*6 inch huller rubber roller size (diameter ):223 x152mm
*Fast roll speed ( R / min ):1120
*Rice milling roller speed ( R / min ):960
*Rice milling roller size (diameter ):114 x225mm
*Total power:26.6KW
0.75KW×4
7.5KW×1
15KW×1
1.1KW×1
*Output: (600~ 800) kg / hour
* Size:2000 ×4000×3500(mm)

4. Main structure:
The Stoner, rice huller, rice milling machine, grinder, rice grading sieve, hoist, a dust collector, pipeline skakelong, electric control cabinet.





NPF114B

Click
NPF114C

Click

NPF series Double-Pipe Jet Rice Mill
The rice mill has the advantages of jet milling and whitening, twice bran absorption, cyclone bran collection, automatic separation of rice and bran, etc. In addition, the milled rice is clean and bright with low temperature and less broken rice. Jet milling and whitening to convert the paddy in one operation. It can also be used with rubber-roil rice huller to whiten cargo rice. The has have the striking strong point of avoiding adjustment on main axis while installation and no parts taken apart while changing belt.
NPF 114C dual-PIPE fine rice bran Milling Machine based on the improvement of 110B.
1.It is able to ensure the concentricity roller box in the screen, not adjusted.
2. It is easy to change belt.
3. This machine is small, small plants are built.
4, More compact, easy disassembly and easy maintenance.

NPF114B/C:
Yield:(500~600)Kg/h
POWER:15KW
Manual download




Click

LHP series rice mill
this series machine has high quality rubber roller rice huller combined with new structure rice mill with blowing wind.It is fine structure.It is both capable of operating continuously hulling and polishing.to turn pre-cleaned paddy into white rice in one pass.With advantages of less broken rice,high rate of polished rice,low temperature and little power consumption.
LHP-6-114:
Yield:(600~800)Kg/h
POWER:18.5KW
LHP-6-150:
Yield:(800~1000)Kg/h
POWER:22
KW
Manual download


Click

NPF114 rice mill+TQSF gravity and suction type destoner:




Click

LHP series rice mill+TQSF gravity and suction type destoner:




Click
rotary sieve paddy separator
Click
Gravity paddy separator

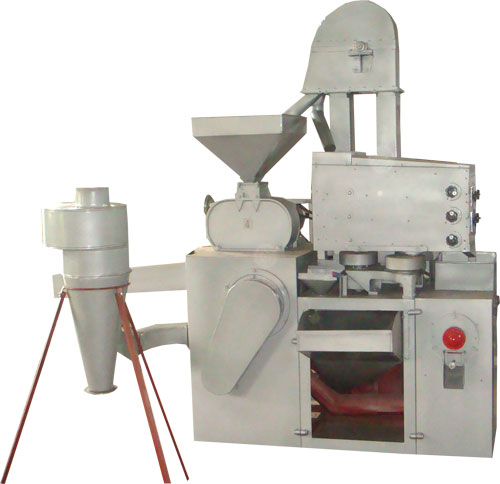

nzj-15/15 series rice mill:

Model NZJ-15/15 smal complete set of combined rice-grinding equipment will produce 15t of rice perday.This equipment consists of cleaning sieve,stone removing machine,6"rubber roll rice huller,Chaff separation,rice and unpolished rice separation,and rice polisher.

This equipment is equipped with sundries clearing and stone removing process device,with features of high rice rate,less broken,low consumptive energy,rice can be processed with no need of special factory house and foundation mounting.Suitable for town grain distributon station,farm,countryside and village,enterprises and farmers in mountain area processing rice.
NZJ-15/15II:
Yield:(500~600)Kg/h
POWER:15KW(can use Electric motor or diesel engine)






Click

MCHT SERIES COMPLETE SET RICE MILLING EQUIPMENT

The Series of MCHT complex rice-mill which consist of good-performance Combined Drum Sieve. Vibrating Cleaning Sieve, Suction Gravity De-stoner, Rubber-Roller Huller, Gravity Paddy Separator, Emery-roller/Iron-roller Blower Rice Whitener. White Rice Grading Sieve, Rice Polisher, high-efficiency bucker elevator and electric control panel. It can do automatically without break the whole course from rice cleaning, rice hulling, separating rice from chaff, rice milling through finished rice packing. It’s featured with following advantages:

Every major operation unit is driven by an independent generator, which is controlled by an independent control panel.

A bottomless bucket is dopted in the bucket elevator, which thus works with high efficiency and low grinding.

The device is coated with a technique of static spray coating; the coating looks smooth and fine and is weatherproof.

The feeding pipes are made of smooth glass, which looks good and very durable, too.

Dust-removing is done by a dust-collector which incorporates a high-efficiency reverse-blowing fabric bag, which allows no leakage of dust and thus produces no harm to the environment.

The main units are top-quality products of famous brands and good reputation.

Yield:30Ton/day,40Ton/day,50Ton/day,80Ton/day
